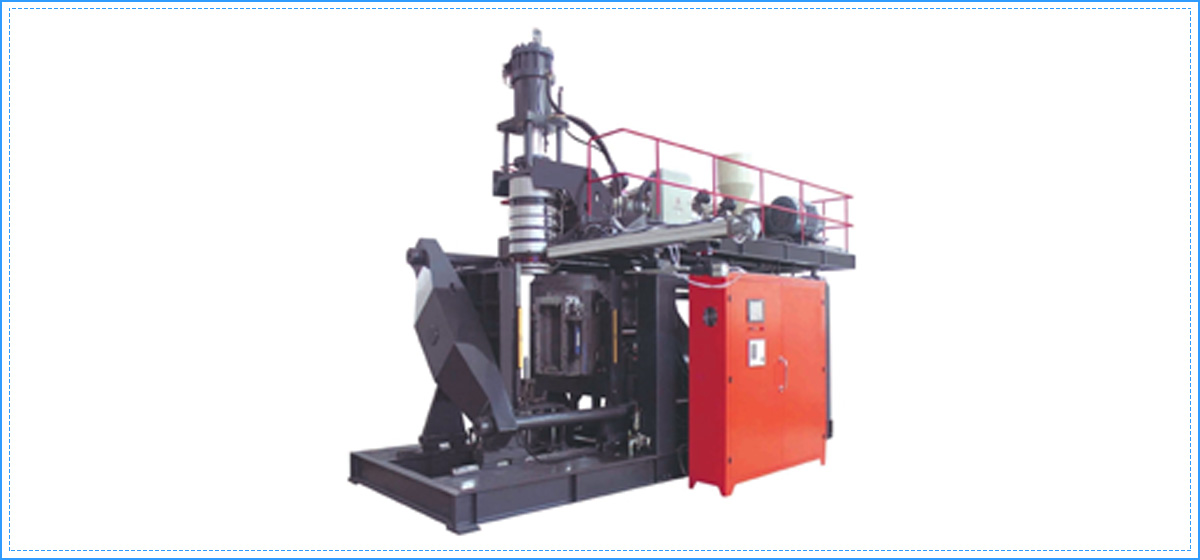

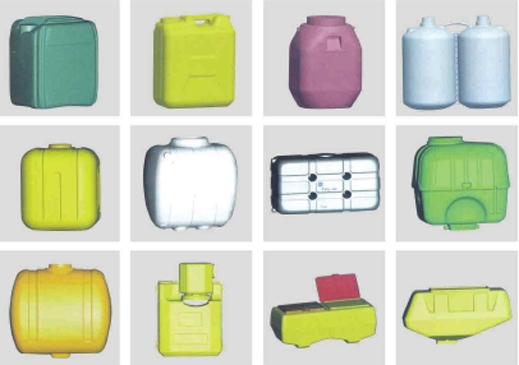

This model is suitable for products with less than 200 liters.
Linear guideway structure I-shaped frame.
Hydraulic die closing, stable and powerful, good line
The machine adopts linear guideway structure, which is fast and stable.
The computer is controlled by PLC, high speed and stable:
The head fruit is thinned and thickened by the red type of material storage.
| category | project | unit | TVA-200L-A | TVA-200L-A-II |
| The basic apecifications | The range of the material | -- | HDPE | HDPE |
| Products the largest volume | L | 220 | 220 | |
| Machine dimension | M | 7.0*3.0*4.2 | 7.5*3.5*4.2 | |
| Machine weight | KG | 20000 | 21000 | |
| Extrusion system | The screw diamete | mm | 110 | 90/90 |
| The screw length to diamet ratio | L/D | 30:1 | -- | |
| The screw rotation speed | r/min | 10-85 | 10-85 | |
| Plasticizing capacity | kg/h | 220 | 240 | |
| Drive motor | KW | 55 | 30/30 | |
| Heating power | KW | 27 | 23/23 | |
| Die head | The die material | -- | 38CrMOALA | 38CrMOALA |
| The loading cylinder volume | L | 20 | 20 | |
| The loading weight | KG | 15 | 15 | |
| Heating power | KW | 22 | 22 | |
| System combining a model | Template size | mm | 1150*1300 | 1150*1300 |
| Open mode spacing | mm | 600-1650 | 600-1650 | |
| Clamping force | KN | 600 | 600 | |
| energy consumption | The servo oil pump motor | KW | 22 | 22 |
| Installed the total power | KW | 126 | 150 | |
| The average energy consumption | KW/h | 57 | 67 | |
| Gas consumption | m3/min | 1.0 | 1.0 | |
| Water consumption | m3/h | 2.5 | 2.5 |
| TVA-220L-A-III | TVA-220L-B | TAV-220L-B-II | TAV-220L-B-III |
| HDPE | HDPE | HDPE | HDPE |
| 220 | 220 | 220 | 220 |
| 7.5*3.5*4.2 | 7.5*3.5*4.2 | 7.5*3.5*4.2 | 7.5*3.5*4.2 |
| 23000 | 20000 | 21000 | 23000 |
| 90/70/70 | 110 | 90/90 | 90/70/70 |
| -- | 32:1 | -- | -- |
| 10-85 | 10-85 | 10-85 | 10-85 |
| 280 | 220 | 240 | 280 |
| 30/18.5/18.5 | 55 | 30/30 | 30/18.5/18.5 |
| 23/18/18 | 27 | 23/23 | 23/18/18 |
| 38CrMOALA | 38CrMOALA | 38CrMOALA | 38CrMOALA |
| 20 | 20 | 20 | 20 |
| 15 | 15 | 15 | 15 |
| 22 | 22 | 22 | 22 |
| 1150*1300 | 1150*1300 | 1150*1300 | 1150*1300 |
| 600-1650 | 600-1650 | 600-1650 | 600-1650 |
| 600 | 600 | 600 | 600 |
| 22 | 22 | 22 | 22 |
| 170 | 126 | 150 | 170 |
| 77 | 57 | 67 | 77 |
| 1.0 | 1.0 | 1.0 | 1.0 |
| 2.5 | 2.5 | 2.5 | 2.5 |
