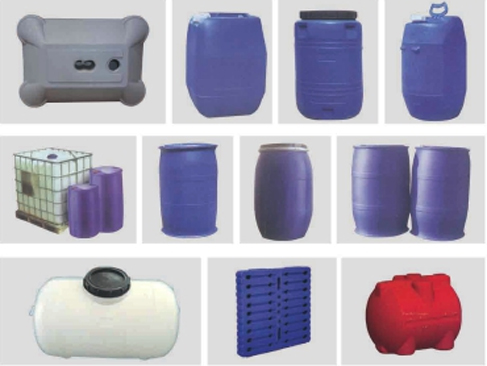

This model is suitable for products with less than 1000 liters.

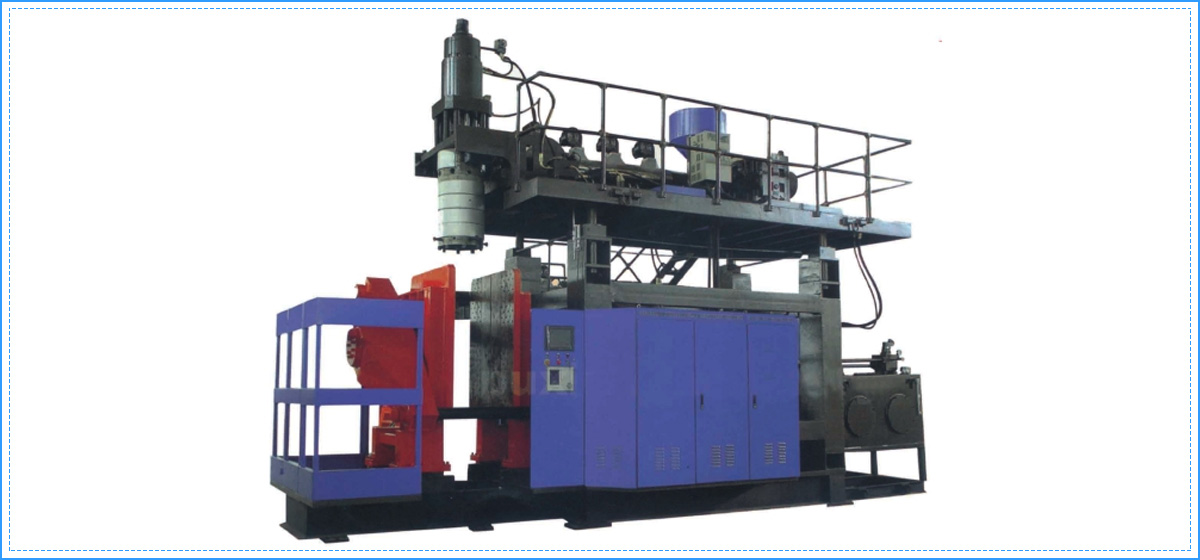

Linear guideway structure I-beam frame.
Hydraulic die closing, stable and powerful, good sewing.
The machine adopts linear guideway structure, which is fast and stable.
The computer is controlled by PLC, which is high speed and stable.
The head adopts a thin-wall thickness controller with storage cylinder and arm.
| category | project | unit | TVA-500L | TVA-500L-II |
| The basic apecifications | The range of the material | -- | HDPE etc | HDPE etc |
| Products the largest volume | L | 500 | 500 | |
| Machine dimension | M | 7.4*3.8*5.2 | 7.8*3.8*5.2 | |
| Machine weight | KG | 25000 | 27000 | |
| Extrusion system | The screw diamete | mm | 120 | 100/100 |
| The screw length to diameter ratio | L/D | 30:1 | -- | |
| The screw rotation speed | r/min | 10-85 | 10-85 | |
| Plasticizing capacity | kg/h | 280 | 320 | |
| Drive motor | KW | 75 | 45/45 | |
| Heating power | KW | 35 | 25/25 | |
| Die head | The die material | -- | 38CrMOALA | 38CrMOALA |
| The loading cylinder volume | L | 30 | 30 | |
| The loading weight | KG | 22.5 | 22.5 | |
| Heating power | KW | 27 | 27 | |
| System combining a model | Template size | mm | 1200*1400 | 1200*1400 |
| Open mode spacing | mm | 650-1850 | 650-1850 | |
| Clamping force | KN | 800 | 800 | |
| energy consumption | The servo oil pump motor | KW | 30 | 30 |
| Installed the total power | KW | 167 | 197 | |
| The average energy consumption | KW/h | 75 | 89 | |
| Gas consumption | m3/min | 1.0 | 1.0 | |
| Water consumption | m3/h | 3.0 | 3.0 | |
| TVA-500L-III | TVA-1000L | TVA-1000-II | TVA-1000-III | TVA-1000-IV |
| HDPE etc | HDPE etc | HDPE etc | HDPE etc | HDPE etc |
| 500 | 1000 | 1000 | 1000 | 1000 |
| 7.8*4.0*5.2 | 7.8*4.3*6.2 | 7.8*4.3*6.2 | 7.8*4.3*6.2 | 7.8*4.3*6.2 |
| 30000 | 35000 | 40000 | 45000 | 50000 |
| 90/90/90 | 130 | 110/100 | 100/90/90 | 90*4 |
| -- | 30:1 | -- | -- | -- |
| 10-85 | 10-85 | 10-85 | 10-85 | 10-85 |
| 340 | 350 | 380 | 400 | 480 |
| 45/30/30 | 90 | 55/45 | 45/30/30 | 30/30/30/30 |
| 25/23/23 | 38 | 27/25 | 25/23/23 | 23/23/23/23 |
| 38CrMOALA | 38CrMOALA | 38CrMOALA | 38CrMOALA | 38CrMOALA |
| 30 | 40 | 40 | 40 | 40 |
| 22.5 | 30 | 30 | 30 | 30 |
| 27 | 32 | 32 | 32 | 32 |
| 1200*1400 | 1600*1900 | 1600*1900 | 1600*1900 | 1600*1900 |
| 650-1850 | 1000-2800 | 1000-2800 | 1000-2800 | 1000-2800 |
| 800 | 1200 | 1200 | 1200 | 1200 |
| 30 | 37 | 37 | 37 | 37 |
| 233 | 197 | 221 | 245 | 284 |
| 105 | 89 | 99 | 110 | 128 |
| 1.0 | 1.2 | 1.2 | 1.2 | 1.2 |
| 3.0 | 3.5 | 3.5 | 3.5 | 3.5 |
