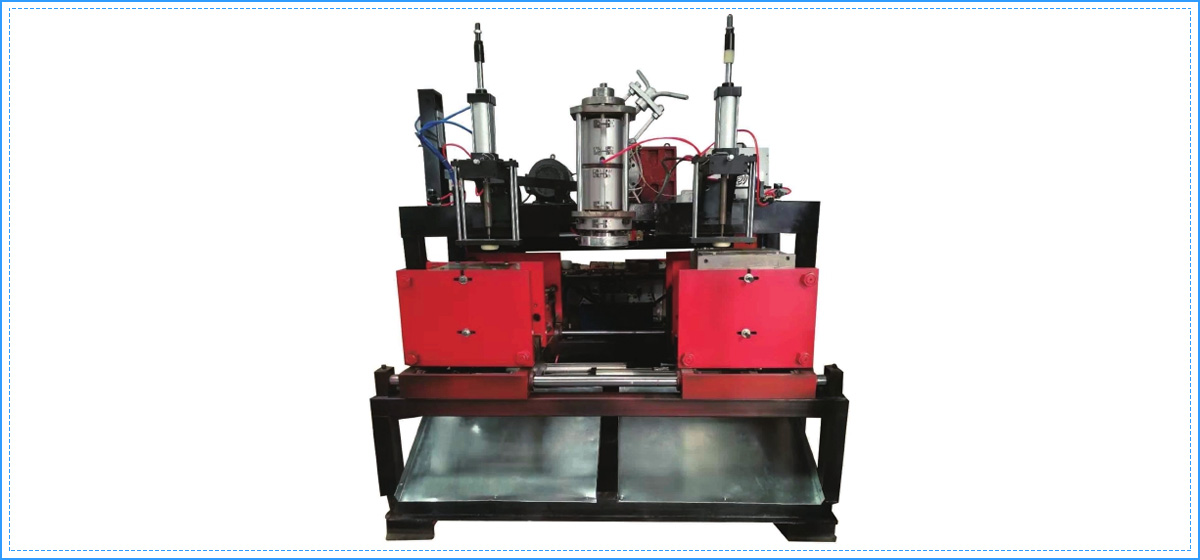

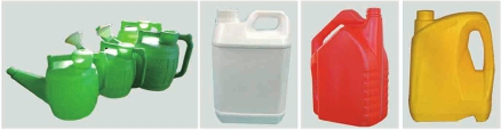

This machine is suitable for 10 litres of the following products.
Linear guide structure Fang Zigang frame.
Hydraulic clamping,stable and powerful,joint shallow well.
Head feed for the center tap lock head,the product is smooth and good appearance.
| Die head | Largest products volume production | 10L |
| The most big die diameter single-mode head | 120mm | |
| The double die head center distance | 60-150mm | |
| Three die center distance | 50-90mm | |
| Four die center distance | 50-70mm | |
| Die heading section number | 5 | |
| Die heading power | 100-1000 | |
| System combining a model | Clamping force | 180-240 |
| Clamping stroke | 380-440 | |
| Drive travel | 260 | |
| Mould thickness | ||
| Extrusion system | The screw diameter | 65 |
| The screw length to diameter ratio | 25L/D1 | |
| HDPE extrusion amount | ||
| Screw motor power | 7.5KW | |
| Screw heating section number | 4 | |
| Screw the heating power | 8.1 | |
| Power | The oil pump motor power | 5.5KW |
| Oil pump drive power | ||
| The servo motor power | ||
| Maximum total power | 12KW | |
| Blow air pressure | 0.6-0.8 | |
| Air emissions | ||
| The average energy consumption | 108 | |
| Cooling water pressure | ||
| Water consumption of cooling water | ||
| Computer | PLC touch screen | |
| The basic specifications | Machine dimension | 2700*1760*1800 |
| Machine weight | 3T |
