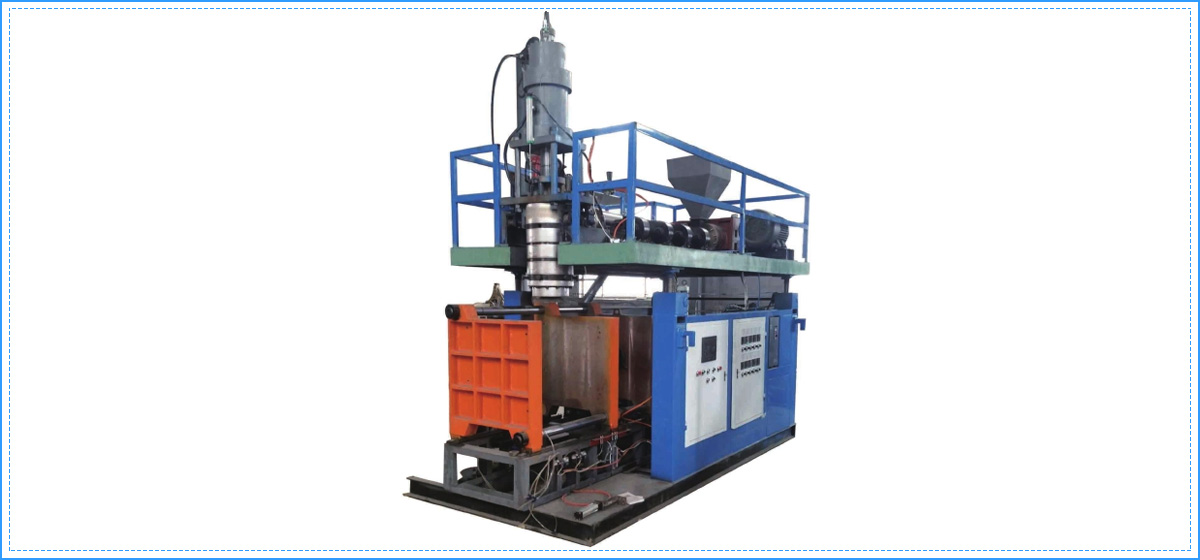

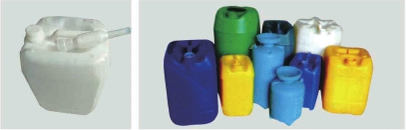

This machine is suitable for 25 litres of the following products.
Linear guide structure Fang Zigang frame.
Hydraulic clamping,stable and powerful,joint shallow well.
Head feed for the center tap lock head,the product is smooth and good appearance.
| Part name | note | ||
| Location number | Simplex bit | ||
| Model Numbers | 1 | ||
| Die form | The loading type 16 KG | ||
| The screw | Phi 110 desalination-25：1 | ||
| reducer | ZLY1225 | ||
| Squeeze expected frequency converter | 37 kw | ||
| Crowded material motor | 37 kw | ||
| The oil pump motor | 18.5 kw | ||
| The oil pump | 100 l/MIN | ||
| Hydraulic valve | Northern precision machine | ||
| Clamping structure | The parallel bars | ||
| Clamping structure | Center clamping | ||
| Electric control principle | PLC +touch screen | ||
| Touch screen | Taian whalen 6100 l 10 inches | ||
| PLC | Japan's mitsubishi FX | ||
| Wall thickness control | 100 company uniform wall thickness control | ||
| Low voltage electrical appliances | chint | ||
| The temperature control | Temperature control table 10 area | ||
| Heating coil | Stainless steel | ||
| Automatic feeding machine | The spiral | ||
| Opening mould | 1 set of |
