This machine is suitable for 1-5 litres of the following products.
Linear guide structure Fang Zigang frame.
Hydraulic clamping,stable and powerful,joint shallow well.
Head feed for the center tap lock head,the product is smooth and good appearance.

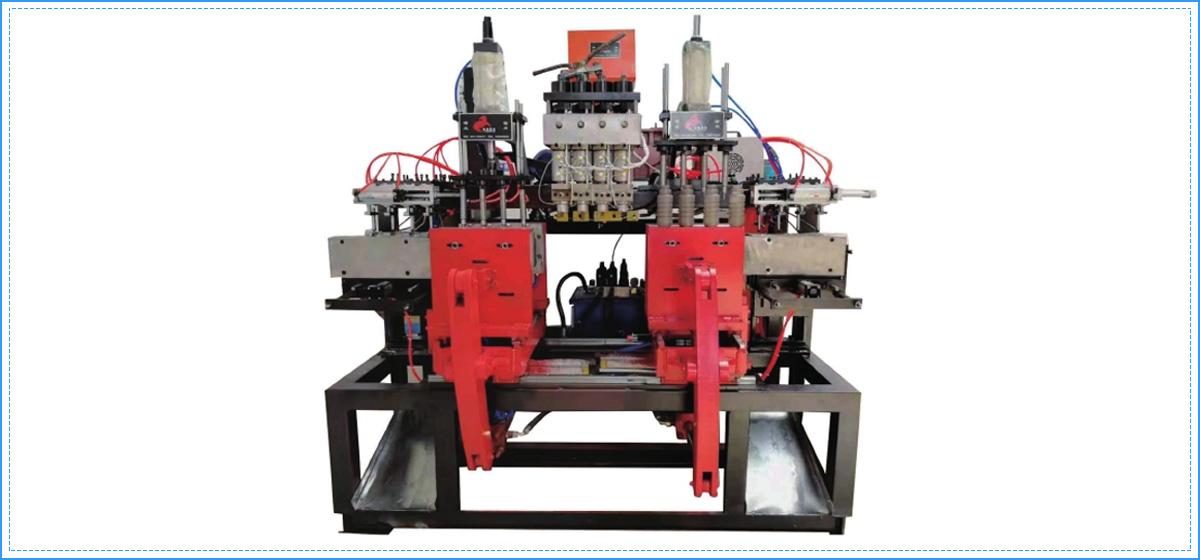

| The machine model | CHB65-2 |
| Products volume | 5L |
| Head type | 65 PE |
| The nose category | Center or side into the material |
| The range of the material | PE PP |
| The screw diameter | 65mm |
| The screw length to diameter ratio | 1/25 |
| Speed control | Frequency control of motor speed |
| The screw rotation speed | 0 to 50 RPM |
| Plasticizing capacity | 56 kg/h |
| Electrical and mechanical extrusion machine power | 11-15 KW |
| Intelligent temperature control | |
| The computer | PLC touch screen |
| Frequency control of motor speed | |
| Barrel air-cooled | 4 period of air cooling |
| The oil pump motor power | 7.5 kw |
| Linear guide | HSR35A |
| Clamping cylinder diameter | 80 mm |
| Move mould cylinder diameter | 50mm |
| Blow air cylinder diameter | 50-150mm adjusttable stroke 75 mm |
| Move the cushioning | Schedule deceleration valve |
| Double proportional valve | |
| The machine size | 2700mm(long)*1800mm(wide)*2000mm(high) |
